GRADIENTLESS HOLE INSULATION

HOLE GRADIENTLESS INSULATION (business name is GRADLESS-HOLE insulation) is unique product, using IR light, radiated from warm area, to create gradientless plateau inside the insulation.
Protected by patent no: PUV 2014-559

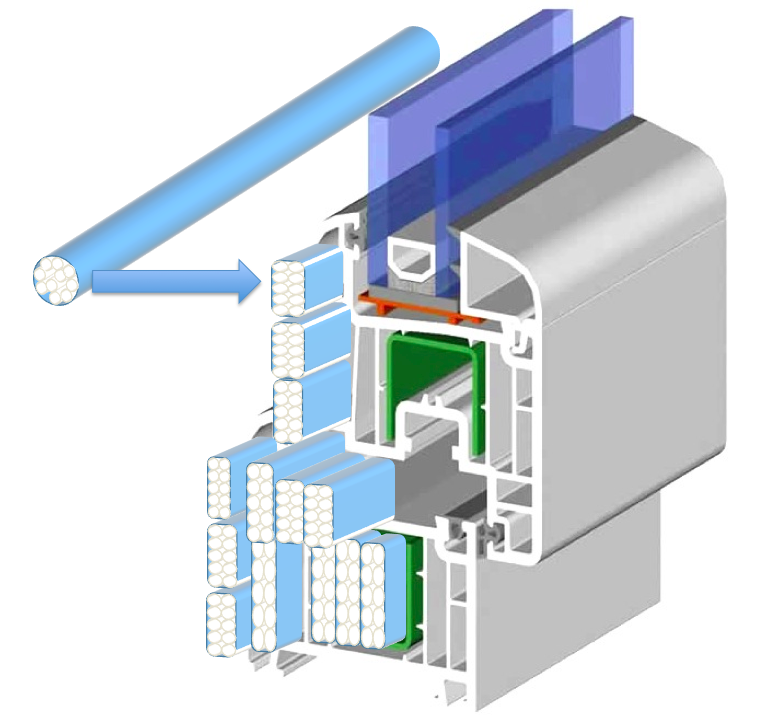

GRADLESS-HOLE insulation in WINDOW FRAME:

DESCRIPTION and PRINCIPLES:

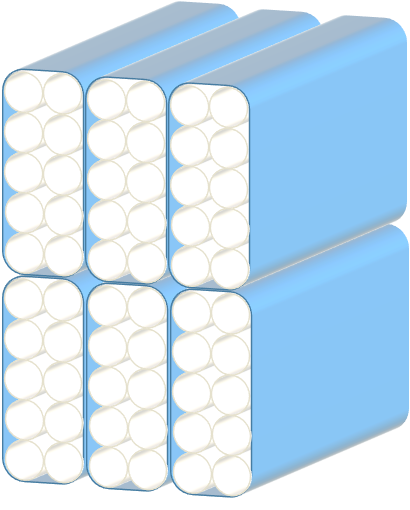

  • The product is composed of a precise number of small tubes, wrapped in IR reflective sheath
  • IR reflected layer is coated on the inner surface of the sheath
  • Reflection of IR light is about 25% higher than by the common relective films (because of silver).
  • Tubes inside the sheath are for IR light mostly transparent (80%) and partly absrobing (20%)
  • Warmer tubes radiate IR light with higher power, from sheath is IR light 99,5% reflected
  • In the hole is everywhere IR light, and the mass of tubes absorbs it and is heated up equally.
  • The temperature of mass become in short time higher than the of air.
  • Mass of tubes has in the middle the exact same temperature = gradientless plateau.

TECHNICAL DATA and USAGE:

  • Recalculated thermal conductivity (Lambda) = 0,004 W/m.K
  • Material of tubes: PET, Material of sheath: PET
  • Temperature resistance up to 100°C
  • Usage in construction, machines, building materials
  • Length of the tube: endless on coil (min. order 100m)
